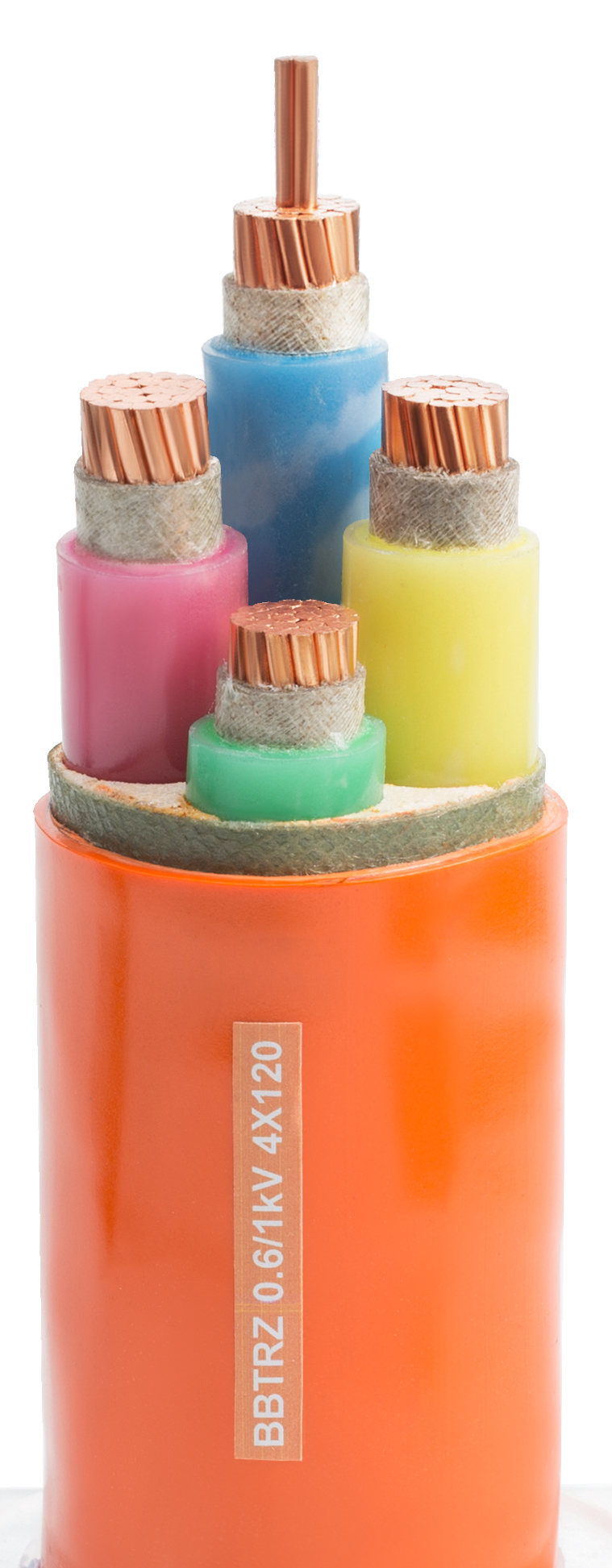

0.6 / 1KV High Safety Fire Resistant Mica Tape Cable 4 Core For Public Places

Ask Lasest Price
Brand Name :	Shenzhen Chengtiantai
Model Number :	BBTRZ
Certification :	CE,UL& ROHS
Price :	on request
Payment Terms :	L/C, T/T
Supply Ability :	5000Km / Month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

0.6 / 1KV High Safety Fire Resistant Mica Tape Cable 4 Core For Public Places

0.6/1KV Fireproof Cable High Safety Fire Resistant Mica Tape Cable 4 Core For Public Places

Mineral insulated Fire resistance cable

This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 125°C Short-Circuit Temperature 250°C

The design, construction and testing are compliant with international standard IEC60502 and testing standard BS6387,with standing temperatures of 950~1000 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.

— Flame Retardant

— High Operating Temperatures

— LSOH Halogen-free

— Great Mechanical Strength

— Competitive Installed Cost

— Public Places

**FIREPROOF CABLE CONSTRUCTUR**
1.1 GB/T 2951-2008 1.2 GB/T 3048-2007 1.3 BS 6837	Conductor	Stranded bare copper
	Insulation (first layer)	mica tape, flame retardant
	Insulation (second layer)	Halogen-free cross-linked polyethylene (XLPE)
	Binder tape	glass-fibre tape
	Filler	Glass yarns
	core wraping	glass-fibre tape as flame-protection
	Inner Sheath	oxygen barrier layer
	Sheath	Halogen-free thermoplastic polyolefin
	Service Temperature	90°C
	Max. conductor temp. in service	125°C
	Short-Circuit Temperature	250°C

**FOUR CONDUCTOR**
Nominal Cross section	Outer Diameter approx.	Weight of cable approx.	Voltage drop		Mini bending radius
Nominal Cross section	Outer Diameter approx.	Weight of cable approx.	Single phase	Three phase	Mini bending radius
mm²	mm	kg/km	V/A.km	V/A.km	mm
4 x 1.5	11.6	320.3	30.8	26.7	174.0
4 x 2.5	12.5	379.6	18.9	16.4	187.5
4 x 4	13.7	481.3	11.8	10.2	205.5
4 x 6	14.9	587.7	7.9	6.81	223.5
4 x 10	18.9	792.6	4.7	4.05	283.5
4 x 16	21.4	1,070.3	2.94	2.55	321.0
4 x 25	24.5	1,528.3	1.87	1.62	367.5
4 x 35	27.8	1,961.6	1.35	1.17	417.0
4 x 50	31.7	2,554.9	1.01	0.87	475.5
4 x 70	36.4	3,460.9	0.71	0.61	546.0
4 x 95	41.3	4,740.7	0.52	0.454	619.5
4 x 120	45.5	5,797.5	0.43	0.371	682.5
4 x 150	50.7	7,038.6	0.36	0.313	760.5
4 x 185	55.2	8,663.4	0.30	0.265	828.0
4 x 240	61.9	11,185.7	0.26	0.222	928.5
4 x 300	69.2	13,822.6	0.23	0.197	1038.0
